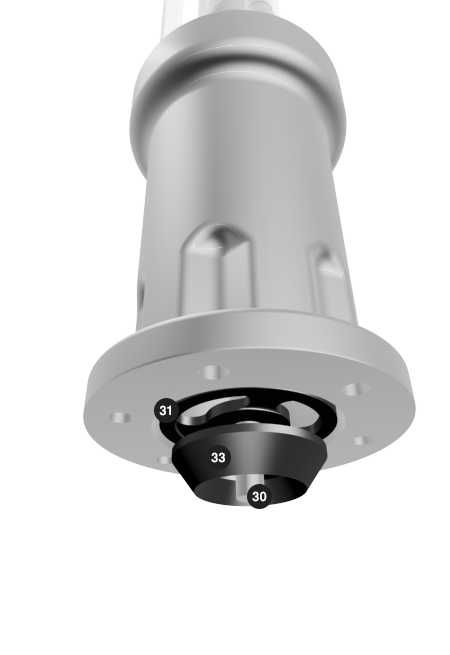

Assembly – Primer Plate Assembly
February 28, 2017 20:18Install (Item 31) primer plate (indentation facing down) and (Item 33) primer button (in the proper orientation) onto the bottom end of the (Item 30) primer rod. NOTE: See operator’s manual for th...

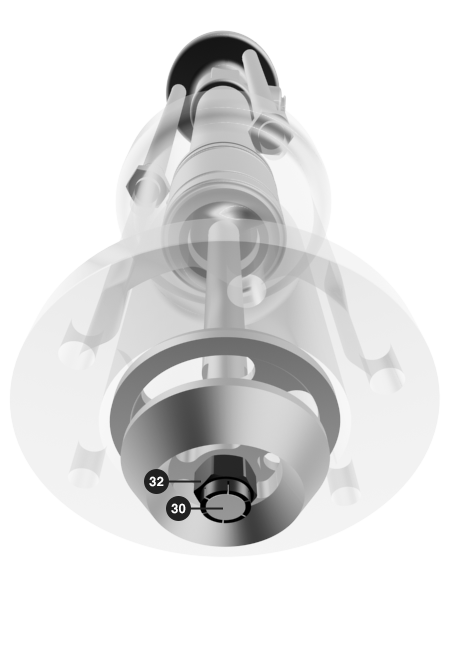

Assembly – Primer Plate Assembly
February 28, 2017 20:19With a ½" box/open end wrench on the (Item 30) primer rod flats and a 7/16" box/open end wrench on the (Item 32) lock nut, securely tighten the (Item 32) lock nut onto the bottom end of the (Item 3...

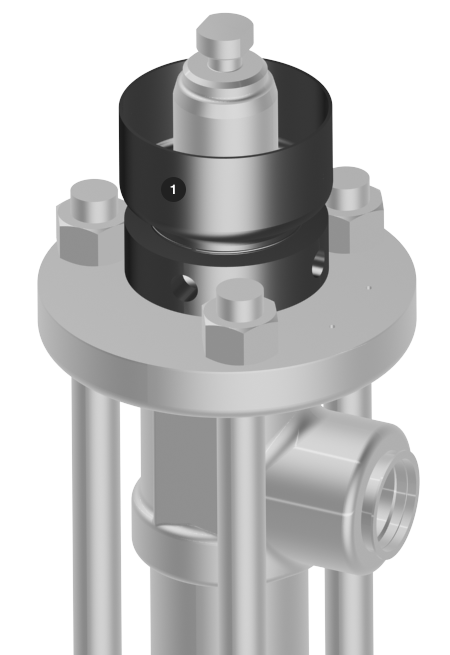

Assembly – Solvent Cup Assembly
February 28, 2017 20:19Tighten the (Item 1) solvent cup mechanically tight using ARO part number 93456-1 or a rod with an outer diameter of ⅜". NOTE: Remove the three temporary 5/8-18 nuts from the top of the three (Ite...

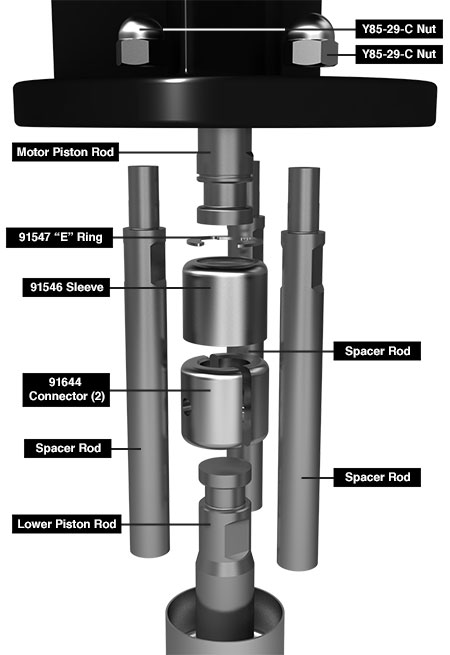

Assembly – Pump Connection Upper / Lower
January 03, 2018 20:56Align the pump motor with the lower pump end. Position the air inlet of the motor 90° from the material outlet. Install the two (94688) connectors and retain with the (94689) sleeve. Slide the (95...
