Assembly – Outlet Body Assembly
February 28, 2017 20:17Apply a compatible lubricant to the new (Item 7) gasket from the repair kit and insert the (Item 7) gasket into the bottom of the (Item 6) outlet body.
Assembly – Solvent Cup / Packing Nut
February 28, 2017 19:01Apply PTFE tape to the threads on the (Item 2) packing nut. Note: Threads must be clean and treated with Loctite 7471 Primer T, which requires 3-5 minutes to dry. Starting with the bottom end of ...

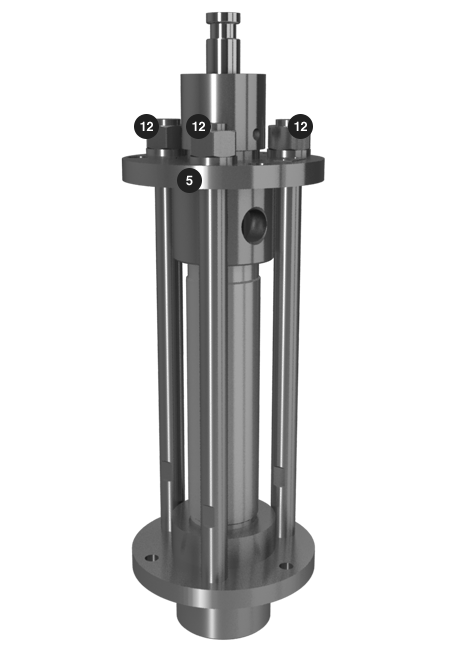

Assembly – Foot Valve to Material Tube (continued)
September 14, 2016 20:51Place the pump into the vise by the top (Item 5) retaining ring. NOTE: Be careful not to scratch, dent or damage the (Item 5) retaining ring and remaining pump parts. Using a torque wrench, torqu...

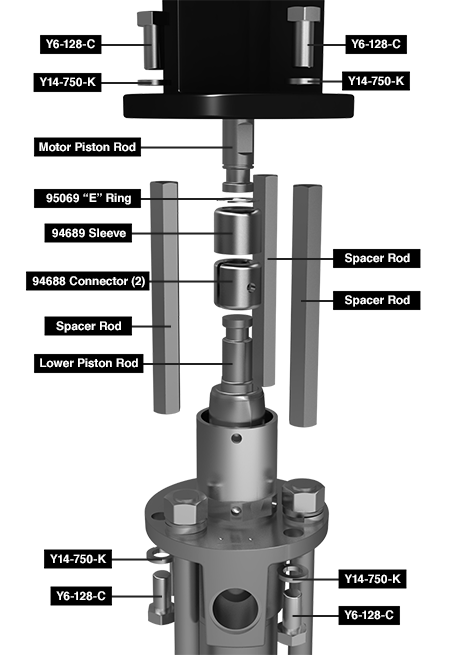

Assembly – Connect Motor / Lower

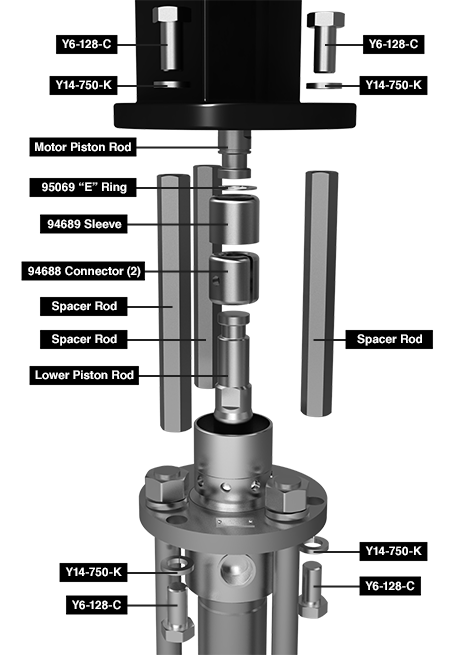

January 04, 2018 20:51Align the pump motor with the lower pump end. Position the air inlet of the motor 122° from the material outlet. Install the two (94688) connectors and retain with the (94689) sleeve. Slide the (9...

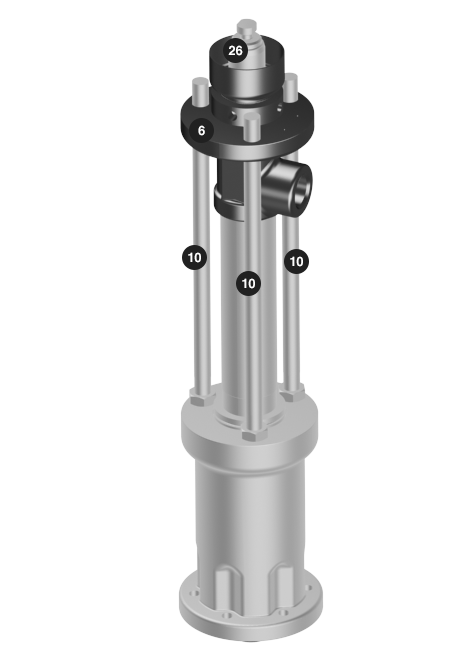

Assembly – Outlet Body Installation
February 28, 2017 20:17Ensure outlet body is reoriented according to the markings from slide 5. Lubricate the (Item 26) plunger with a compatible lubricant. Starting with the bottom of the (Item 6) outlet body, slide the...

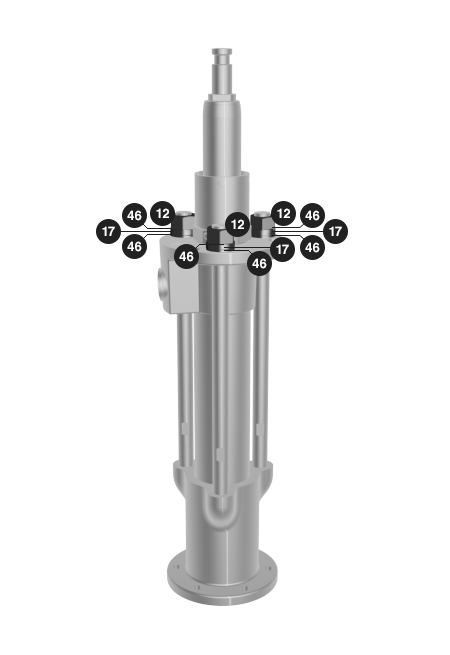

Assembly – Studs
February 28, 2017 19:02Secure three (Item 10) studs with the six (Item 46) washers, three (Item 17) lock washers and three (Item 12) nuts oriented as shown in the operator’s manual. One (Item 46) washer on top and on bot...

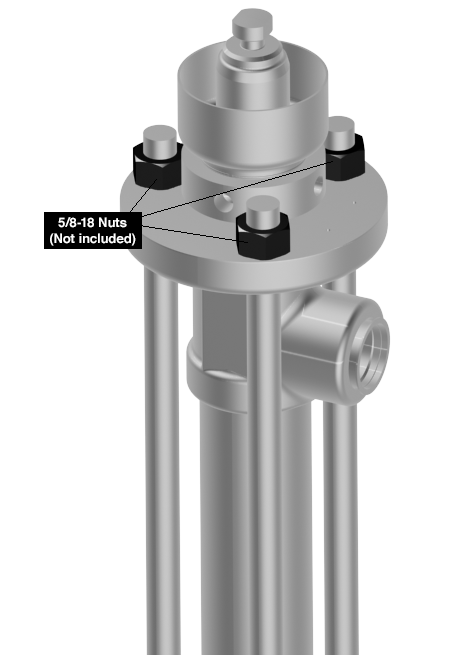

Assembly – Tie Rod Assembly
February 28, 2017 20:18Temporarily secure the (Item 6) outlet body to the three (Item 10) tie rods using three 5/8-18 nuts (Nuts not included). Used to secure the (item 6) outlet body in place until the air motor is conn...

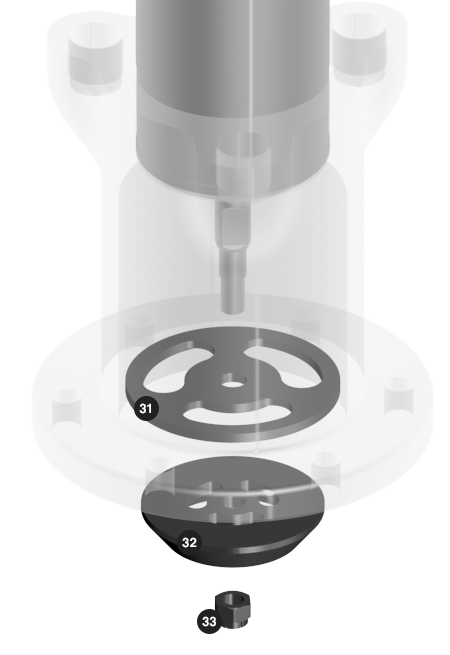

Assembly –Primer Plate Assembly
February 28, 2017 19:03Install the (Item 31) primer plate, (Item 32) primer button and securely thread the (Item 33) lock nut onto the bottom end of the (Item 30) primer rod using a 16" adjustable wrench.
Assembly – Connect Motor / Lower
January 03, 2018 20:07Align the pump motor with the lower pump end. Position the air inlet of the motor 120° from the material outlet. Install the two (94688) connectors and retain with the (94689) sleeve. Slide the (9...

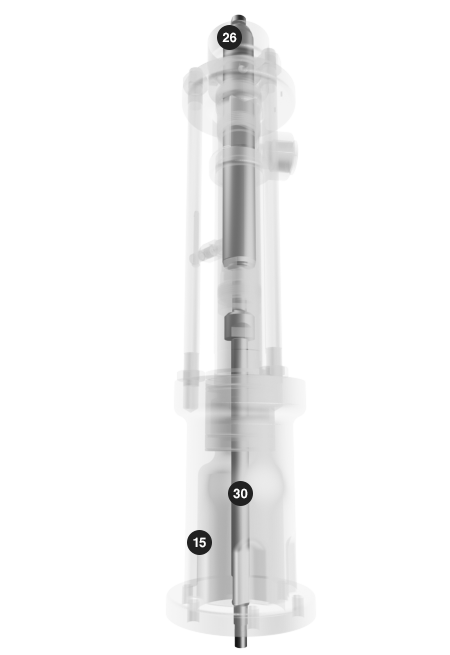

Assembly – Plunger and Primer Rod Installation
February 28, 2017 20:18Push the (Item 26) plunger & (Item 30) primer rod assembly all the way through the (Item 15) pressure chamber body until the (Item 30) primer rod flats are accessible at the bottom of the (Item...
