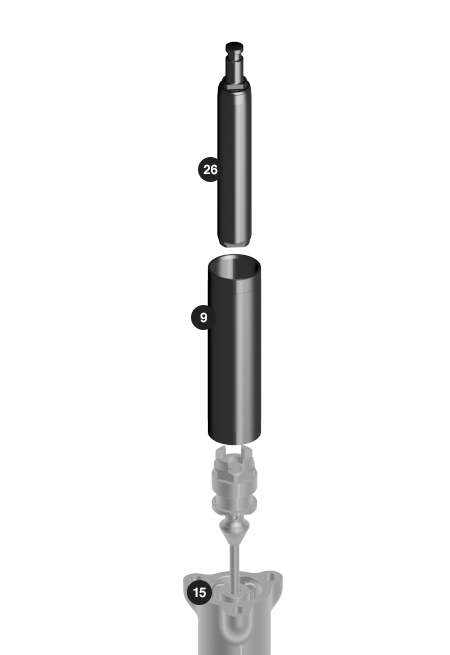

Disassembly – Remove Plunger Assembly
May 23, 2017 14:56Completely remove (Item 26) plunger assembly and (Item 9) tube from (Item 15) pressure chamber body.

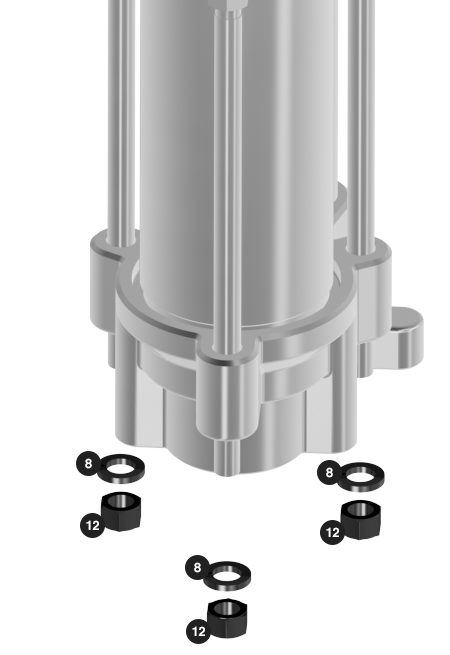

Disassembly – Remove Tie Rod Hardware
February 28, 2017 21:37Using a ¾" box/open end wrench unscrew and remove the three (Item 12) tie rod nuts and three (Item 8) lock washers from the bottom of the pump. NOTE: Lightly tap the end of the ¾" box/open end wre...

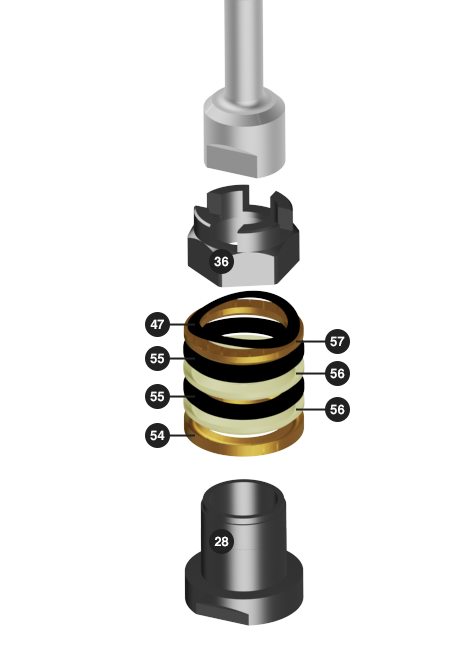

Disassembly – Disassemble Packing Assembly
February 28, 2017 20:06Put (Item 28) seat in the vice and secure on seat flats. Remove the (Item 36) valve seat nut with a 15" adjustable wrench. Remove the below items from the (Item 28) seat: (Item 47) Wave spring (It...
Disassembly - Disassemble Upper Packing Assembly
February 28, 2017 15:06Take (Item 26) plunger out of vice. Move to the (Item 1) solvent cup and (Item 74) nut assembly. Finish unthreading the (Item 74) nut from the (Item 1) solvent cup and remove: (Item 77) Bushing (I...
Disassembly – Remove Adapter from Plunger
September 14, 2016 19:46Put (Item 33) adapter and (Item 26) plunger rod assembly in the vice, on the (Item 33) adapter flats. Use a large crescent wrench on the (Item 26) plunger rod flats to loosen the (Item 33) adapter ...

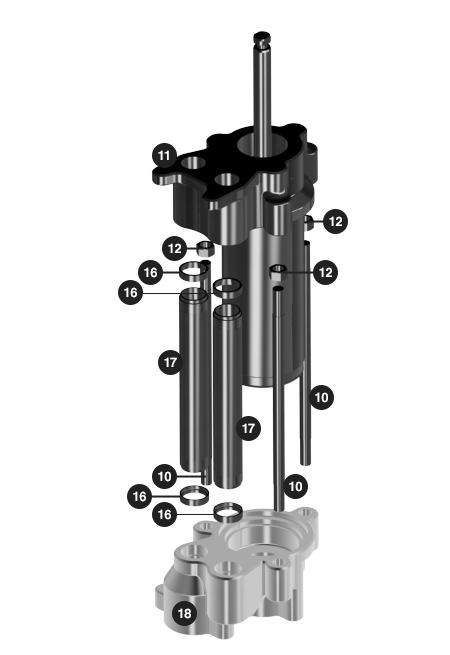

Disassembly – Remove Upper Body & Downtubes
February 28, 2017 21:38Using a ¾" box/open end wrench, towards the upper end of the three (Item 10) tie rods, screw three upper (Item 12) tie rod nuts all the way down until they bottom out on the tie rods. Using the (It...

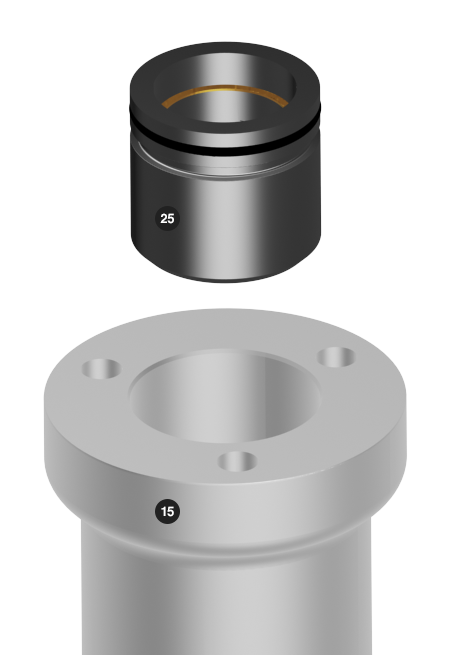

Disassembly – Remove Check Stop Assembly
February 28, 2017 20:07Remove (Item 25) check stop assembly from the (Item 15) pressure chamber body. If it cannot be removed by pulling on it, use a flathead screwdriver to pry (pop) (Item 25) check stop out/up.
Disassembly – Disassemble Pressure Chamber Body
February 28, 2017 18:47From (Item 15) pressure chamber body remove: (Item 19) Stop assembly (Item 21) Foot valve body (Item 7) Gaskets (2 pcs.) (Item 22) Check valve seat

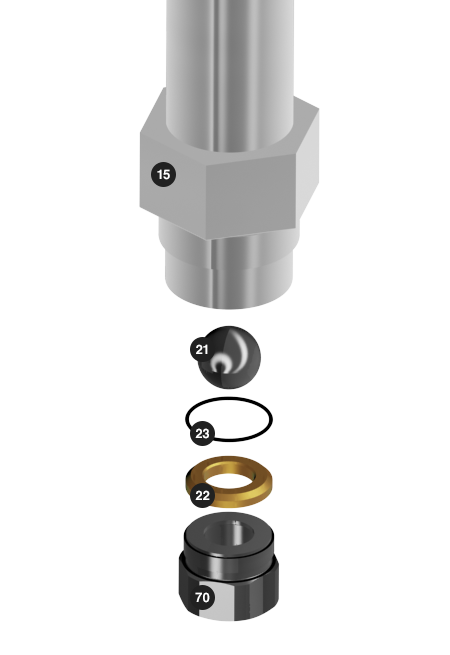

Disassembly - Disassemble Lower Ball & Seat Assembly
February 28, 2017 15:07Finish unthreading (Item 70) adapter out of the (Item 15) inlet body and remove: (Item 22) Seat and (Item 21) Ball (Item 23) O-ring NOTE: Inspect (Item 22) seat and (Item 21) ball for wear and d...
Disassembly – Remove Adapter from Plunger
September 14, 2016 19:47Continue to unthread and remove the (Item 33) adapter from the end of the (Item 26) plunger rod and remove the: (Item 50) Female packing washer (Item 55 & Item 56) “V” packings (Item 53) Male ...
