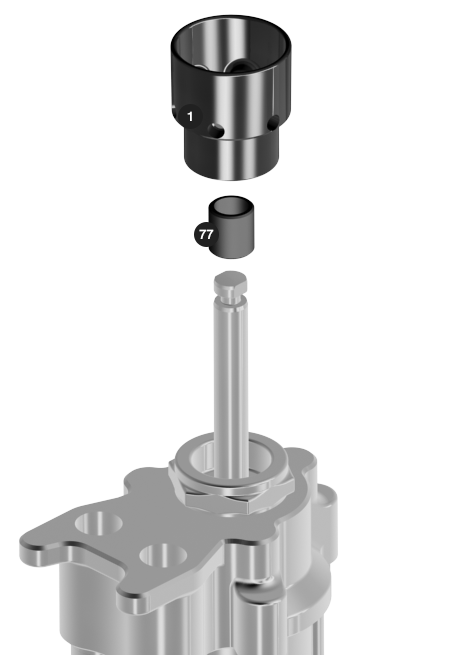

Disassembly – Remove Solvent Cup
February 28, 2017 21:36Using ARO part number 93456-1 or a ⅜" diameter rod, unscrew and remove (Item 1) solvent cup, releasing (Item 77) bushing.

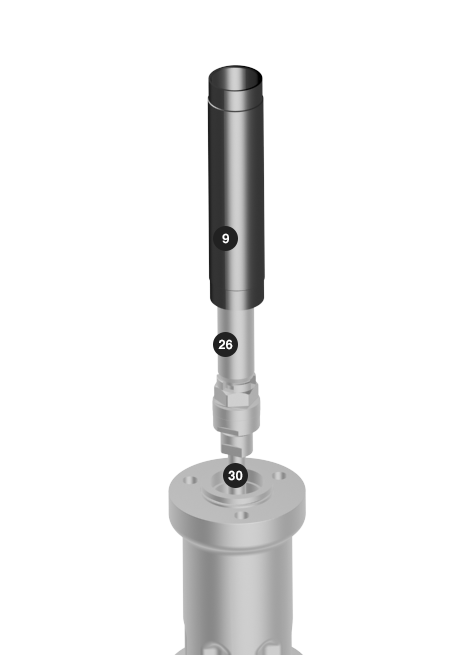

Disassembly – Remove Suction Tube
February 28, 2017 20:06Remove (Item 9) suction tube from the (Item 30) primer rod and (Item 26) plunger assembly. Place the (Item 30) primer rod and (Item 26) plunger assembly in the vice and secure vice on (Item 30) pri...

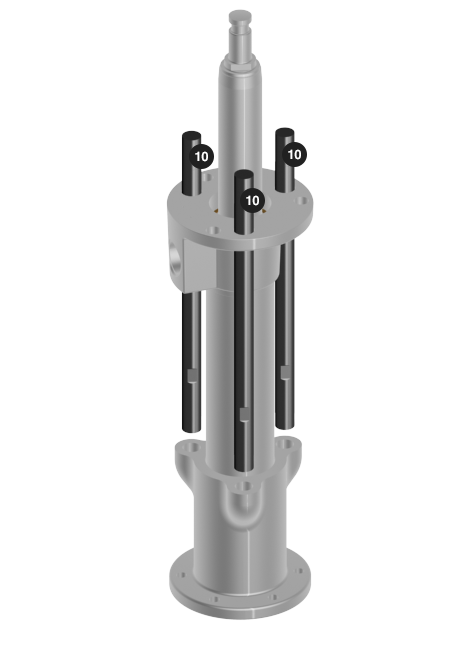

Disassembly – Remove Studs
February 28, 2017 18:46Completely remove the three (Item 10) studs with a 16" adjustable wrench on the stud flats.

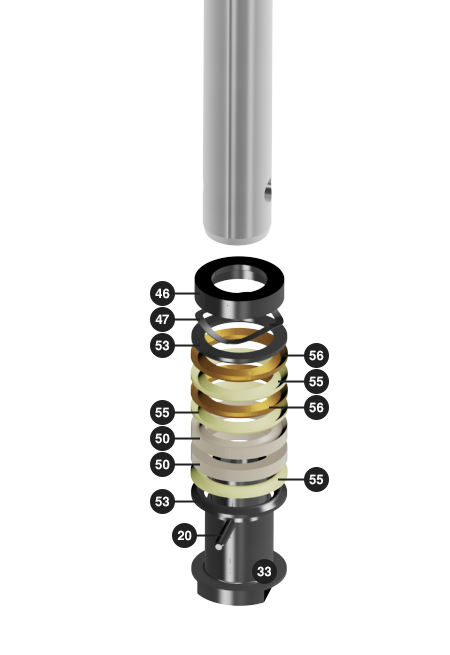

Disassembly - Disassemble Lower Packings Assembly
February 28, 2017 15:03Remove the remaining pump assembly from the vice. Secure the (Item 26) plunger assembly in vice by the button end of the plunger. NOTE: Take care not to damage the (Item 26) plunger outer diameter...

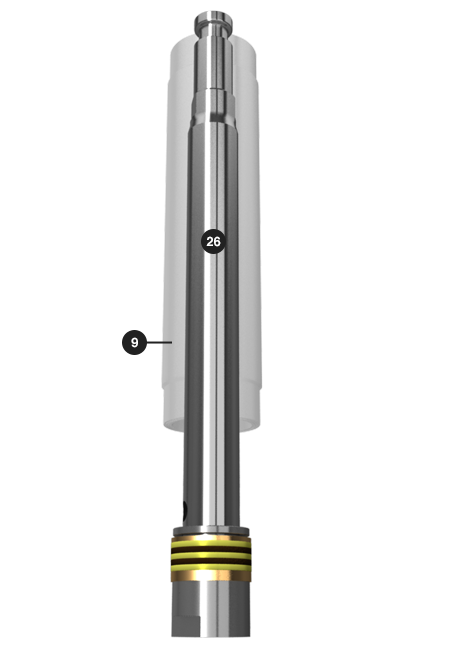

Disassembly – Material Tube (continued)
September 14, 2016 19:43Remove the (Item 9) material tube by gently tapping the top (button end) of the (Item 26) plunger rod assembly with a soft mallet, through the (Item 9) material tube. If the packings are not damage...

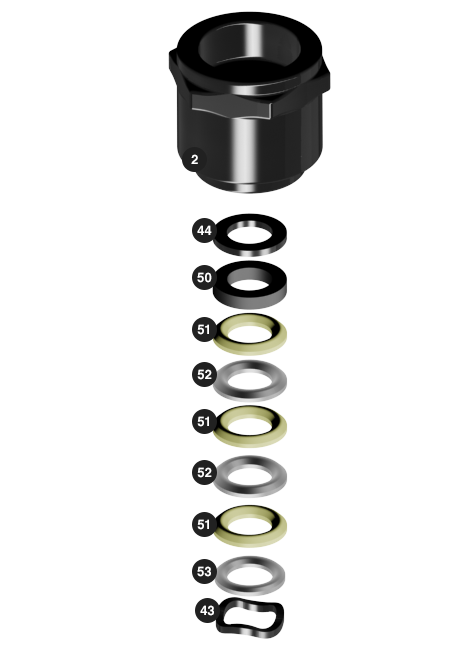

Disassembly – Disassemble Gland Nut
February 28, 2017 21:37Using a 24" adjustable wrench, unscrew and remove (Item 2) gland nut, releasing (Item 43) wave spring, (Item 53) washer, five (Items 51 & 52) “V” packings, (Item 50) washer, (Item 44) washer an...

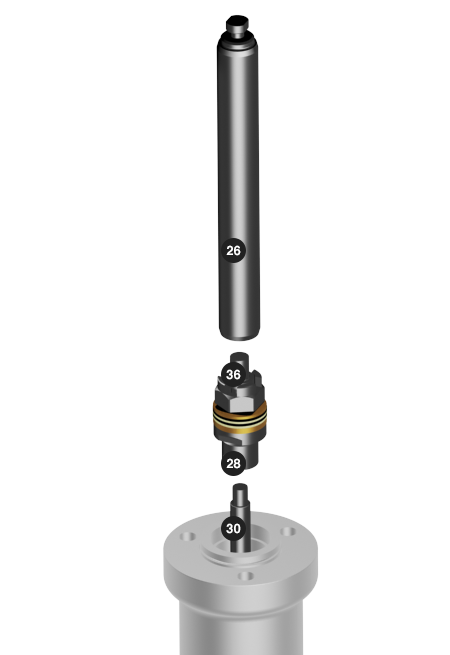

Disassembly – Disassemble Plunger and Packing Assembly
February 28, 2017 20:06Remove the (Item 26) plunger from the (Item 30) primer rod with a 15/16" box/open end wrench on the (Item 26) plunger flats. Remove the complete (Item 28) seat, (Item 36) valve seat nut and packing...

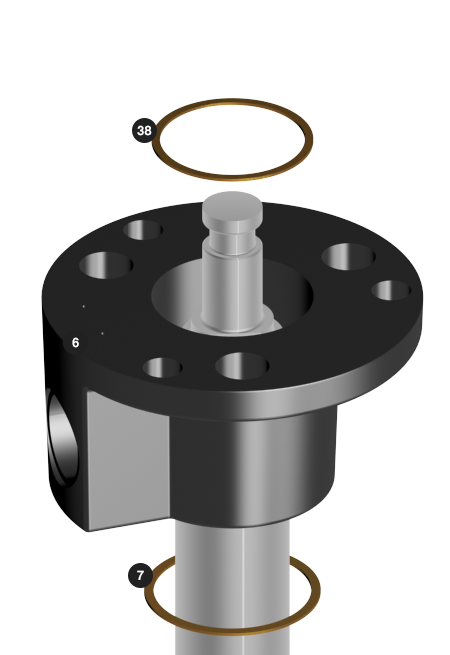

Disassembly – Remove Outlet Body
February 28, 2017 18:47Remove (Item 6) outlet body. From the (Item 6) outlet body remove: (Item 7) Gasket (Item 38) Gasket
Disassembly - Disassemble Upper Ball & Seat Assembly
February 28, 2017 15:05Using a ½" drive ratchet wrench with a ½" drive to ⅝" Allen (hex) socket unthread the (Item 36) adapter from the (Item 33) piston and remove: (Item 28) Seat (Item 29) Gasket (Item 27) Ball NOTE:...

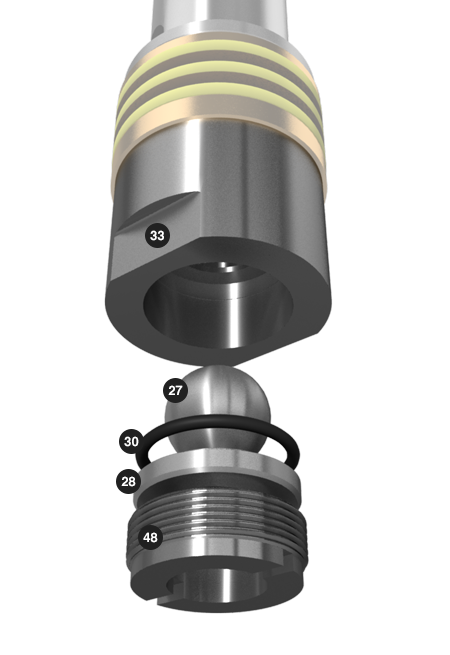

Disassembly - Retaining Nut & Adapter
September 14, 2016 19:44Using the ⅛" spanner wrench, unthread and remove the (Item 48) retaining nut along with the below items from the (Item 33) adapter. (Item 28) Seat (Item 30) O-ring (Item 27) Ball Tools for this...
